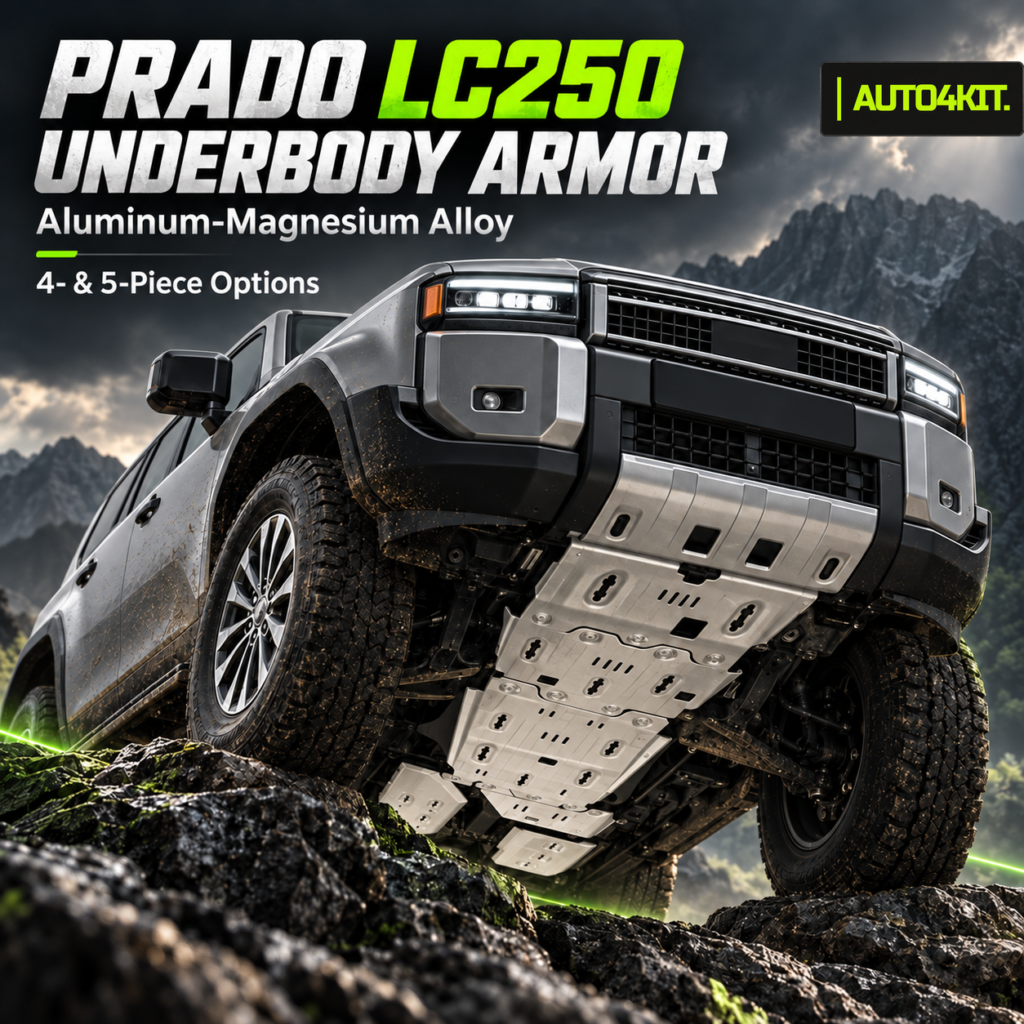

Toyota Prado LC250 Underbody Skid Plates and Fuel-Tank Guards (2024–2026)

Choose Underbody Coverage for Your LC250

These Toyota Prado LC250 skid-plate options provide a choice of coverage for the drivetrain and fuel-tank areas. Select a four-piece or five-piece set, a fuel-tank guard on its own, or the auxiliary fuel-tank skid-plate add-on. Match the package to your vehicle’s powertrain, tank arrangement and existing protection rather than choosing from the fitted photos alone.

How to Choose Your Configuration

• Four-piece sets: guards for the engine, electric motor, transmission and transfer case. Choose the 5 mm or 8 mm thickness. A fuel-tank guard is not included.
• Five-piece sets: the four drivetrain guards plus a fuel-tank guard, available in 5 mm or 8 mm thicknesses.
• Fuel-tank-only sets: one fuel-tank guard, available in 5 mm or 8 mm. These options do not include the other four guards.
• Auxiliary fuel-tank add-on: an auxiliary fuel-tank skid-plate add-on. Confirm its thickness, included installation components and compatibility with your tank layout.

Material and Panel Details

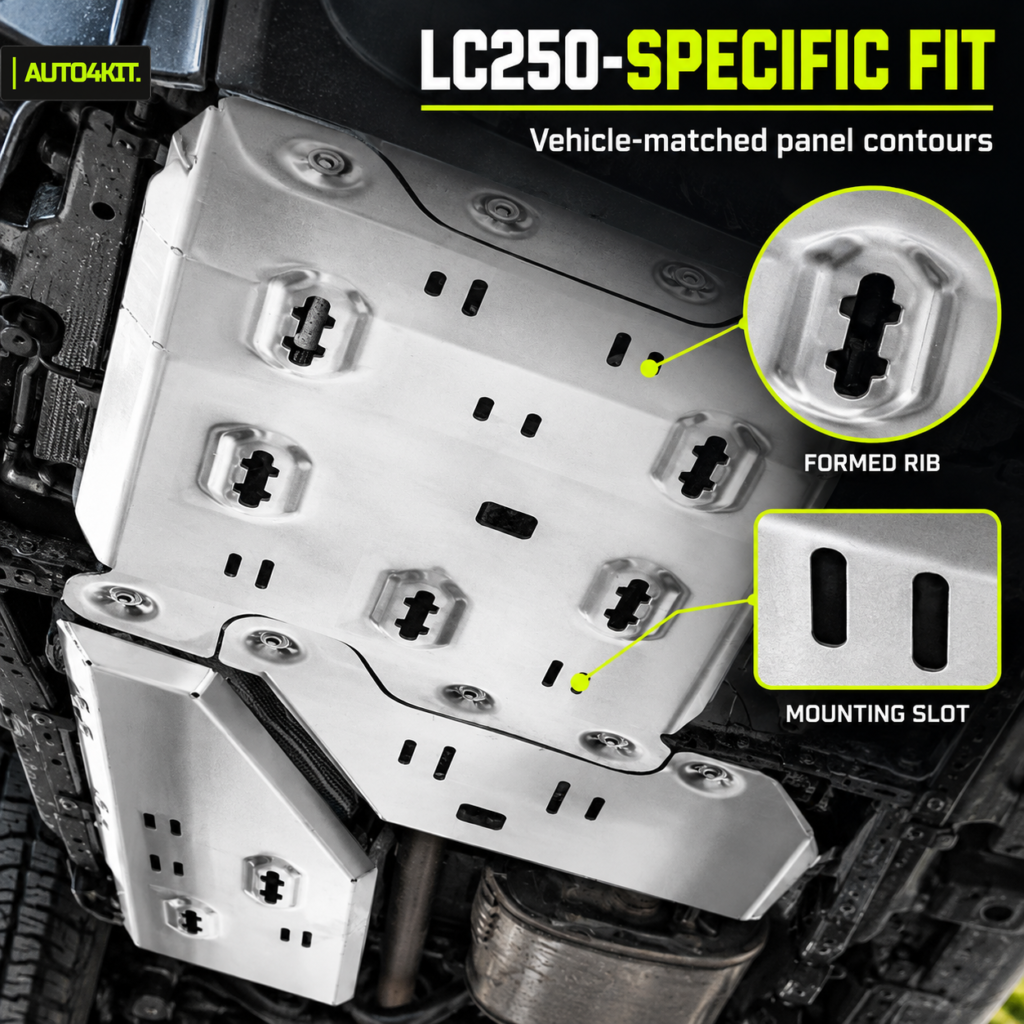

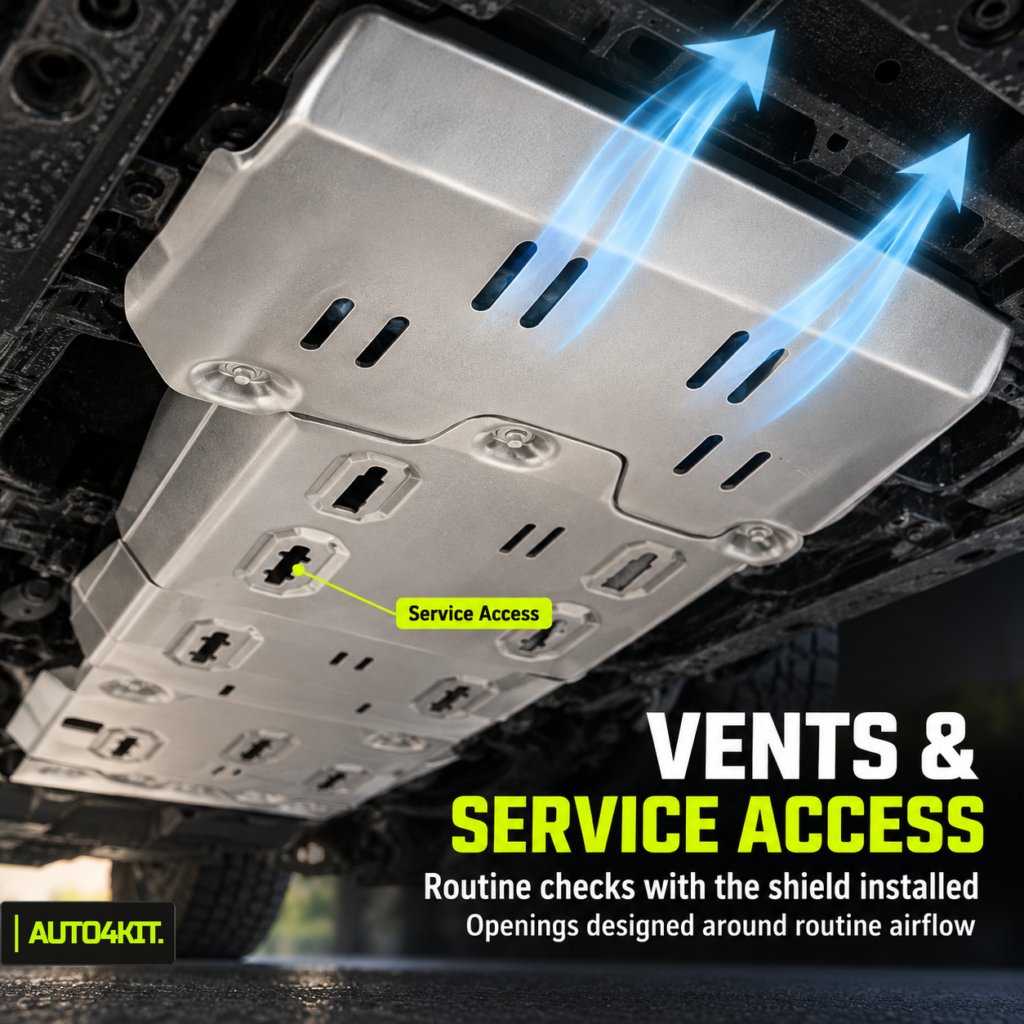

The six standard set options are offered in aluminum-magnesium alloy with a choice of 5 mm or 8 mm thickness. No thickness is specified for the auxiliary-tank add-on. The supplied images illustrate shaped panels, formed ribs, mounting slots, ventilation slots and service-access openings. Confirm the actual supplied panels and access requirements for your vehicle; the artwork does not establish an impact rating, load capacity or guaranteed access to every service point.

Vehicle Fitment and Installation

These options are listed for Toyota Prado LC250 models from 2024–2026. Confirm your model year, market version, powertrain, fuel-tank arrangement, existing underbody equipment and mounting points before ordering. The drivetrain sets name an electric-motor guard, so do not assume identical coverage across every LC250 powertrain. Request the installation requirements, fastening hardware and any clearance checks for the selected set. Installation service and international supply terms must be agreed in your quotation.

Frequently Asked Questions

What is the difference between the four-piece and five-piece sets?

The four-piece set covers the engine, electric motor, transmission and transfer case. The five-piece set adds a fuel-tank guard. Both configurations are offered in 5 mm and 8 mm thicknesses.

Can I order the fuel-tank guard separately?

Yes. The standard fuel-tank guard is listed as a one-piece set in either 5 mm or 8 mm. The auxiliary fuel-tank skid-plate add-on is a separate option; confirm which tank and installation layout it is intended for.

Does the comparison image show every option?

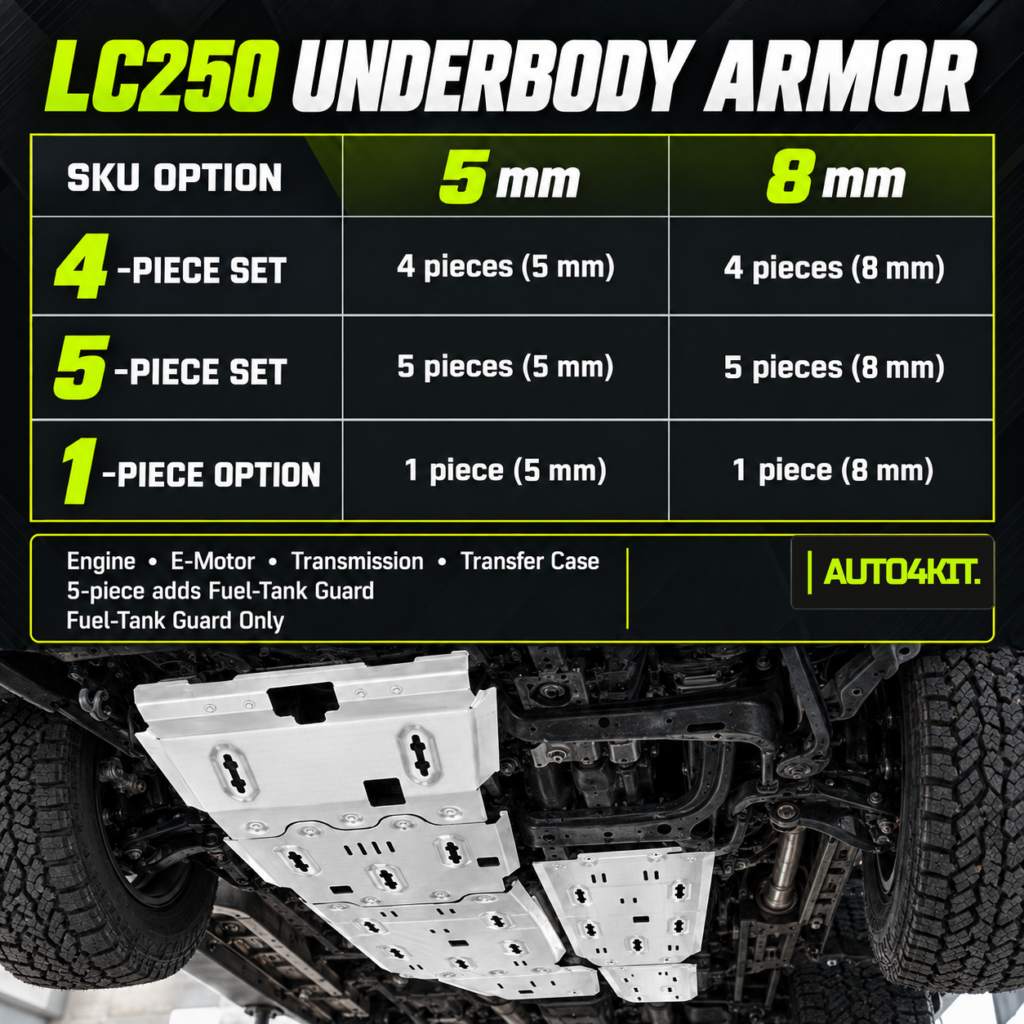

The shared chart shows the six standard thickness and set configurations. It does not show a dedicated auxiliary-tank add-on image. Fitted photos are general references and do not mean that every pictured panel is included in each option.

Will a set fit every LC250 version?

Fitment must be checked for the exact powertrain, market version and tank layout. Send vehicle details and underbody photos with your enquiry so the selected configuration and installation requirements can be confirmed.

Wholesale Enquiries

For a wholesale quotation, provide the selected SKU, quantity, model year, market version, powertrain, tank layout and destination country. Ask us to confirm package contents, hardware, installation requirements, availability and shipping terms. The enquiry button carries your chosen configuration into the request.
